products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Transport Refrigeration Units
Created with Pixso.

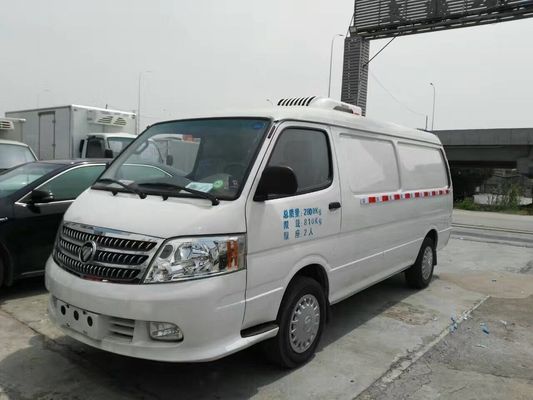

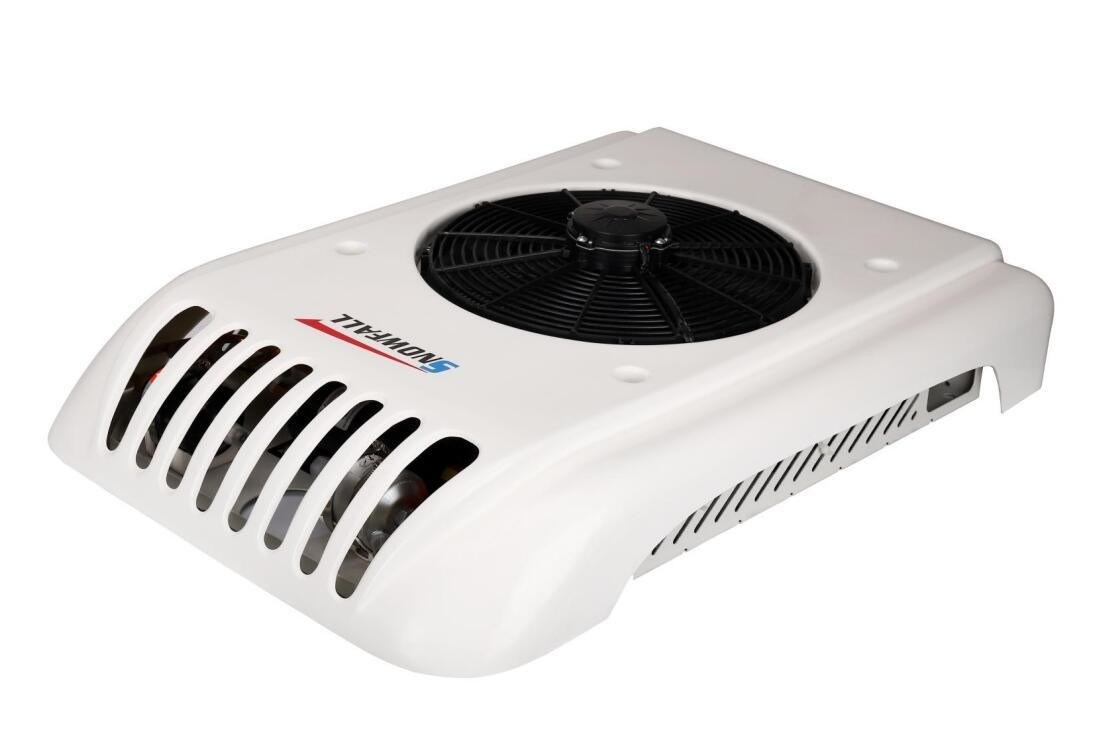

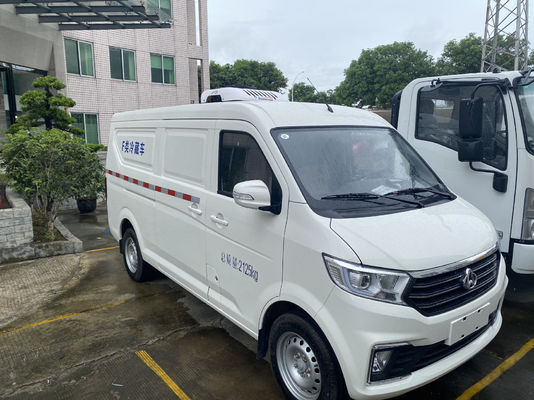

Meat Vegetable Transport Roof Type Truck Freezer Unit , Reefer Unit For Cargo Van

Meat Vegetable Transport Roof Type Truck Freezer Unit , Reefer Unit For Cargo Van

Meat Vegetable Transport Roof Type Truck Freezer Unit , Reefer Unit For Cargo Van

Brand Name: SNOWFALL
Model Number: SF-T200
MOQ: 1set
Supply Ability: 50sets/Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE, ISO
Product Type:
Transport Refrigeration Units
Condenser Type:
Microchannel
Cooling Capacity:
2100Kcal/hr
Dimensions:
920x660x220mm, 640x790x180mm
Warranty:
1years
Weight:
38kg
Temperature Range:
-20°C To 15°C
Voltage:
DC 12V / DC 24V
Compressor Type:
Scroll
Refrigerant Type:
R-404A/ R-134A
Fuel Type:
Directy Drive By Truck Engine
Evaporator Type:
Inner Screw Tube And Aluminum Fin
Packaging Details:
Carton/ Woodcase
Supply Ability:
50sets/Month
Highlight:

Roof Type Truck Freezer Unit

,

Transport Reefer Unit For Cargo Van

,

Vegetable Transport Truck Freezer Unit

Product Description
Meat Vegetable Transport Roof Type Truck Freezer Unit
Reefer Unit For Cargo Van
Key Features
  • Microchannel condenser for efficient cooling
  • Scroll compressor technology for reliable performance
  • Wide temperature range: -20°C to 15°C
  • Direct drive by truck engine
  • Automatically hot air defrost system
  • Compact and lightweight design
Technical Specifications
Attribute Value
Product Type Transport Refrigeration Units
Model SF-T200
Cooling Capacity 2100Kcal/hr (2100W at 0°C)
Temperature Range +20°C to -18°C
Compressor Type Scroll (Model SD5H11/5H14)
Refrigerant Type R-404A/ R-134A
Voltage DC 12V / DC 24V
Power Consumption ≤ 22A(12V) / ≤ 11A(24V)
Dimensions Evaporator: 790×590×170mm
Condenser: 920×660×210mm
Weight Evaporator: 18.62kg
Condenser: 23kg
Warranty 1 year
Component Details
Condenser Type:
Microchannel (P.F.) with axial fan (1000m³/h)
Evaporator Type:
Inner screw tube and aluminum fin with axial fan (800m³/h)
Defrost System:
Automatically hot air defrost
Structure:
Split direct drive unit
