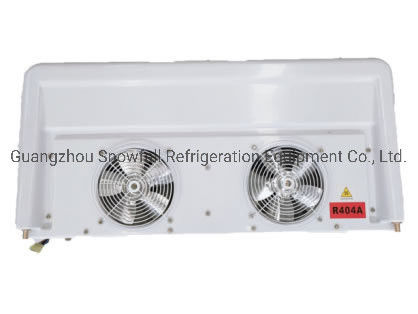

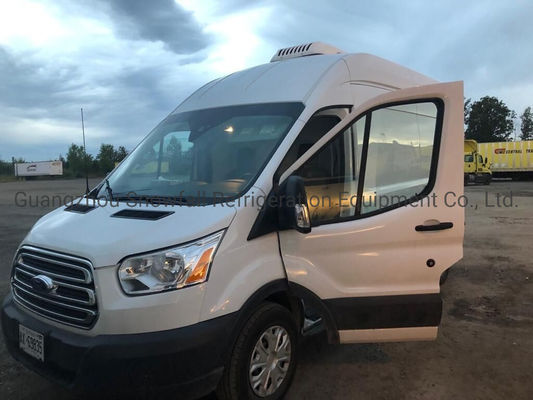

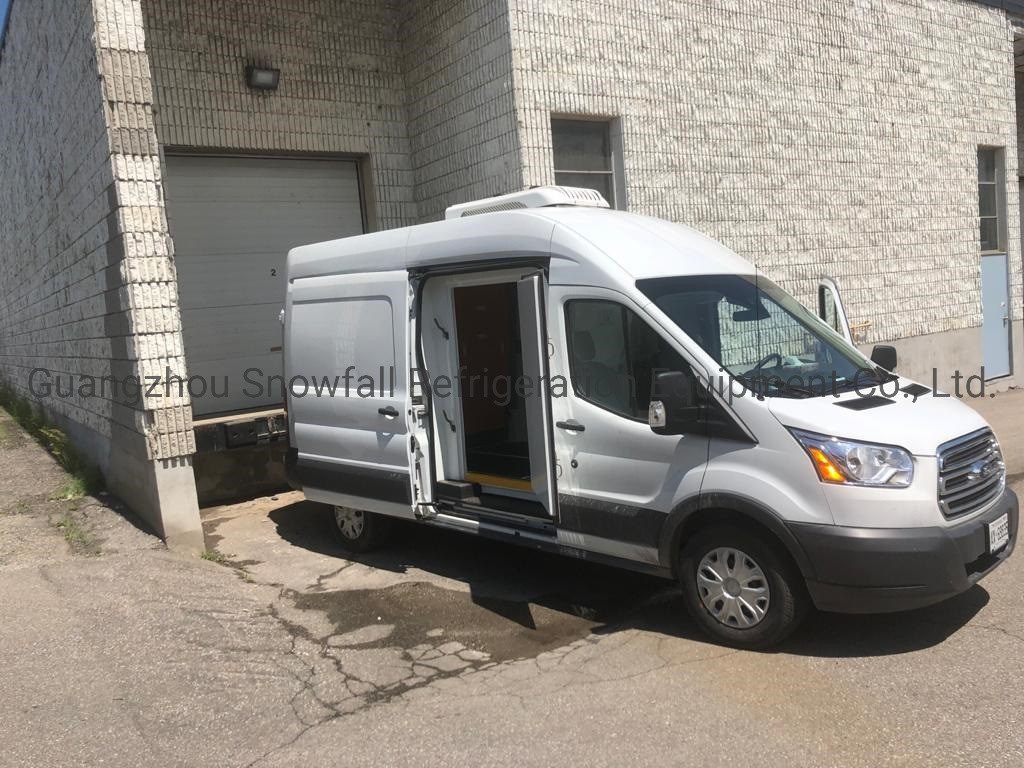

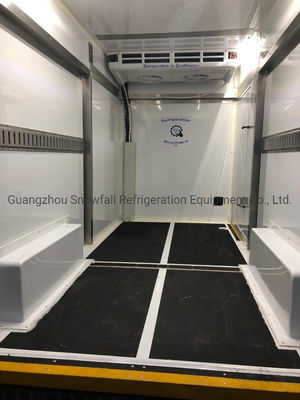

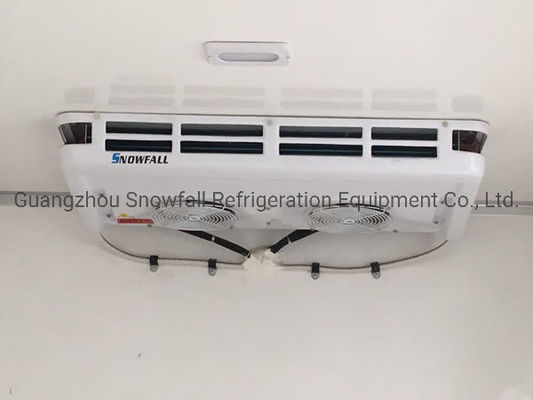

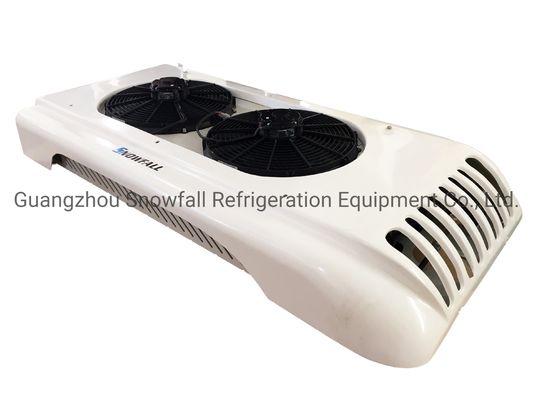

Top Type Van Refrigerator Unit Reefer Unit with Optional Electric Standby System

Detail Information

Product Description

Detail Information

Model NO.:

T-400

Sealing Technology:

Patented O Sealing Technology

Design Base Environment:

45 Degree C

Durability Range:

The Highest Level

Maintenance:

Lower The Cost Of Maintance

Transport Package:

Carton Filled With Paper Honeycomb

Trademark:

SNOWFALL

Origin:

Guangzhou, China

HS Code:

8418692090

Supply Ability:

300 Sets Per Month

Service:

OEM

Installation:

Front, Roof, Under Mounting Type

Electric:

Optional Electric Standby System

Colour:

White

Fan Material:

Aluminium Alloy

Condensor Design:

Latest Exclusively For Refrigeration Unit

Customization:

Available | Customized Request

Highlight:

Top Type Van Refrigerator Unit

Top Type Van Reefer Unit

Product Description

Top Type Freezer Equipment Refrigerator Van Unit

Product Overview

The SF-T400 transport refrigerating unit is designed for light and medium truck applications, offering reliable cooling performance for refrigerated transport. The unit can be driven by the vehicle engine or equipped with an optional standby electric refrigeration system (DC220V/DC380V).

Ideal for transporting refrigerated and frozen foods, dairy products, vegetables, fruits, ice cream, and temperature-sensitive industrial electronic products, this unit delivers stable and reliable refrigeration performance. SNOWFALL offers both classic engine-driven units and new backup built-in units to meet various container volume requirements.

Key Features

Optional DC 12V or 24V operation with backup electric refrigeration system (DC220V/DC380V) available
Lightweight and compact design with front-mounted condenser and flexible evaporator installation options
Comprehensive model range covering refrigerated capacities from 14m³ to 45m³ with precise volume matching
Low operating costs, minimal maintenance requirements, quiet operation, energy efficiency, and environmental compliance

Technical Specifications

Model	SF-T400
Applicable Temperature	+20°C to -18°C

Cooling Capacity

Environmental Temperature	Cooling Capacity
35°C
0°C	3900
-18°C	2300

Compressor

Model	QP16
Displacement	163 cc

Condenser

Type	P.F.
Fan Type	Axial fan
Number of Fans	2 Fans x 1000m³/h
Voltage	DC 12V/DC24V

Evaporator

Type	Inner screw tube and aluminium fin
Fan Type	Axial fan
Number of Fans	2 Fans x 800m³/h
Voltage	DC 12V/DC24V

Additional Specifications

Power Consumption	≤ 33A (DC12V) ≤ 16.5A (DC24V)
Refrigerant	R-134a / R-404a
Defrost Type	Automatically hot air defrost
Structure	Split direct drive unit

Dimensions & Weight

T400 Evaporator	1270 x 580 x 170 mm	31.63 kg
T400 Condenser	1280 x 640 x 1200 mm	31.91 kg
