Logistics 12V 24V Transport Refrigeration Units Truck Cooling Units High Durability

Detail Information

Product Description

Detail Information

Fan Material:

Aluminium Alloy

Condensor Design:

Latest Exclusively For Refrigeration Unit

Sealing Technology:

Patented O Sealing Technology

Design Base Environment:

45 Degree C

Durability Range:

The Highest Level

Maintenance:

Lower The Cost Of Maintance

Transport Package:

Carton Filled With Paper Honeycomb

Trademark:

SNOWFALL

Origin:

Guangzhou, China

HS Code:

8418692090

Supply Ability:

300 Sets Per Month

Type:

Cooling System

Material:

Aluminum

Service:

OEM

Installation:

Front, Roof, Under Mounting Type

Electric:

Optional Electric Standby System

Colour:

White

Customization:

Available | Customized Request

Highlight:

24V Transport Refrigeration Units

Logistics 12V Truck Cooling Units

Truck Cooling Units High Durability

Product Description

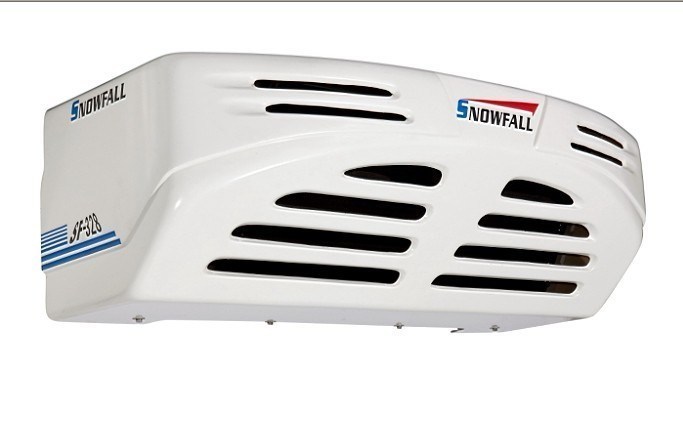

12V/24V Transport Refrigeration Units - High Durability Truck Cooling Systems

Product Specifications

Attribute	Value
Fan Material	Aluminium Alloy
Condenser Design	Latest Exclusive for Refrigeration Unit
Sealing Technology	Patented O Sealing Technology
Design Base Environment	45°C
Durability	Highest Level
Maintenance	Lower Maintenance Costs
Transport Package	Carton Filled with Paper Honeycomb
Trademark	SNOWFALL
Origin	Guangzhou, China
HS Code	8418692090
Supply Ability	300 Sets Per Month
Type	Cooling System
Material	Aluminum
Service	OEM
Installation	Front, Roof, Under Mounting Type
Electric	Optional Electric Standby System
Colour	White
Customization	Available

Technical Specifications - Model SF-T328

Applicable Temperature: 15°C to -20°C

Cooling Capacity (at 0°C): 2800Kcal/3256W/11109BTU

Cooling Capacity (at -18°C): 1750Kcal/2035W/6943BTU

Compressor: SD5H14 (Swash plate type, 138cc/r displacement, POE lubrication)

Condenser: P.F type with 2 axial fans (1000m³/H each), DC12V/24V

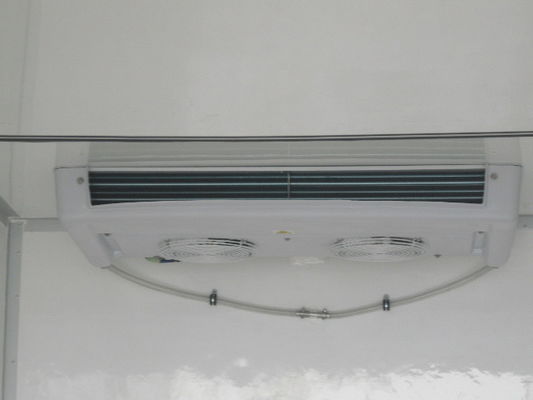

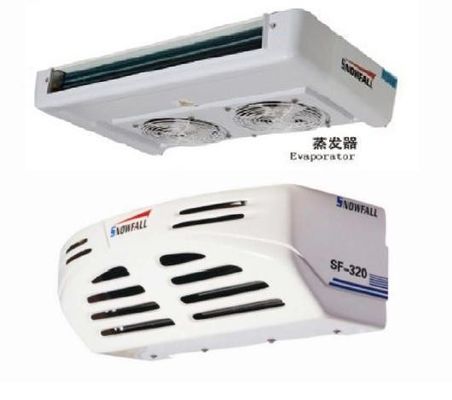

Evaporator: Inner screw tube and aluminum fin with 2 axial fans (1000m³/H each), DC12V/24V

Power Consumption: 33A (DC12V) or 16.5A (DC24V)

Refrigerant: R-134a or R404a

Throttle Type: External equalizer expansion valve

Defrost Type: Automatically hot air defrost

Structure: Split direct drive unit

Dimensions & Weight: Evaporator: 1270×580×170mm (50"×23"×7"), 31.63kg
Condenser: 1000×900×170mm (39"×35"×7"), 33.87kg

Key Features

Maintains optimal freshness for transported goods
High-performance compressor made in Singapore
Advanced automatic hot air defrost system
Durable aluminum alloy construction
Flexible 12V/24V power options
Multiple installation configurations available
Customization options to meet specific requirements

Global Quality Assurance

Our SNOWFALL refrigeration units are manufactured to the highest quality standards and have been successfully exported worldwide. We serve markets across North America, South America, Europe, Asia, Africa, Oceania, and the Middle East, earning an excellent reputation for reliability and performance.
