Forzen Food Transport Refrigeration Units Commercial Truck Refrigeration Units 12V Or 24V

Name: Forzen Food Transport Refrigeration Units Commercial Truck Refrigeration Units 12V Or 24V
Brand: Guangzhou Snowfall Refrigeration Equipment Co., Ltd.
SKU: SF-200
Price: 2,000.00 USD
Availability: InStock

Brand Name:	SNOWFALL
Model Number:	SF-200
MOQ:	2 sets
Supply Ability:	150set/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Evaporator Type:

Finned Tube And Plate

Defrost Type:

Hot Gas

Refrigerant:

R-404A/ R-134A

Temperature Range:

-20°C To +15°C

Controller Type:

Electric Type

Weight:

38KG

Cooling Capacity:

2100Kcal /hr

Dimensions:

48kg

Compressor Type:

Scroll

Warranty:

1 Year Limited Warranty

Voltage:

12V Or 24V

Power Source:

Directy Drive Unit

Insulation Material:

Polyurethane Foam

Condenser Type:

Fin And Tube

Packaging Details:

Carton / woodcase

Supply Ability:

150set/ month

Highlight:

24V Food Transport Refrigeration Units

Forzen Food Transport Refrigeration Units

Commercial Truck Refrigeration Units 12V

Product Description

Frozen Food Transport Refrigeration Units Commercial Truck Refrigeration Units 12V or 24V

Key Specifications

Attribute	Value
Evaporator Type	Finned Tube and Plate
Defrost Type	Hot Gas
Refrigerant	R-404A/R-134A
Temperature Range	-20°C to +15°C
Controller Type	Electric type
Weight	38KG
Cooling Capacity	2100Kcal/hr
Compressor Type	Scroll
Warranty	1 year limited warranty
Voltage	12V or 24V
Power Source	Direct drive unit
Insulation Material	Polyurethane Foam
Condenser Type	Fin and Tube

Product Overview

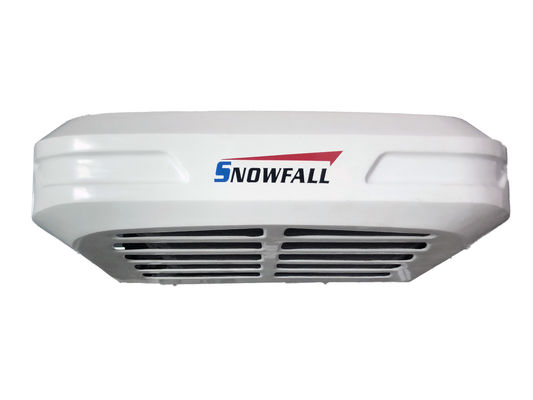

The SF-200 engine-driven transport refrigeration unit is designed for micro and light truck applications, making it ideal for transporting refrigerated food, dairy products, vegetables, and fruits. This reliable unit is suitable for refrigerated preservation vehicles with sizes ranging from 7 to 14 meters.

Key Features:

Optional DC 12V or 24V operation
Lightweight and compact design with front-mounted condenser
Flexible evaporator installation options
Comprehensive coverage for 7m to 14m refrigerated capacities
Environmentally friendly R134a refrigerant
Low operational costs with energy-efficient performance
Minimal maintenance requirements and reduced noise levels

Technical Specifications

Model: SF-200

Operating Temperature Range: 15°C to -18°C

Cooling Capacity:

At 35°C environmental temperature: 2100Kcal
At 0°C: 2100Kcal
At -18°C: 1210Kcal

Compressor Details:

Model: SD5H11/5H14
Displacement: 110cc/138cc

Evaporator Details:

Type: Inner screw tube and aluminum fin
Fan Type: Axial fan
Number of Fans: 1 (1000m³/h capacity)

Electrical Specifications:

Voltage: DC 12V/DC24V
Power Consumption: ≤33A (DC12V) or ≤16.5A (DC24V)

Dimensions and Weight:

SF-200 Evaporator: 610×790×180mm (16.5kg)
SF-200 Condenser: 520×840×315mm (18.2kg)
SF-T200 Condenser: 610×790×180mm (21.33kg)
SF-T200 Condenser: 920×660×200mm (23.33kg)

Additional Features:

Refrigerant: R-134a/R-404a
Defrost Type: Automatic hot air defrost
Structure: Split direct drive unit
Optional electric standby system available
