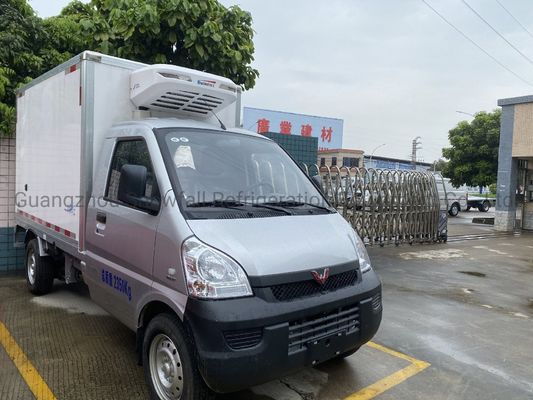

Frozen Food Transport Refrigeration Units For 1 Ton Refrigerated Truck UTE Mini Truck

Name: Frozen Food Transport Refrigeration Units For 1 Ton Refrigerated Truck UTE Mini Truck
Brand: Guangzhou Snowfall Refrigeration Equipment Co., Ltd.
SKU: SF-200
Price: 2,000.00 USD
Availability: InStock

Brand Name:	SNOWALL
Model Number:	SF-200
MOQ:	2sets

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Model NO.:

SF-200

Sealing Technology:

Patented O Sealing Technology

Durability Range:

The Highest Level

Maintenance:

Lower The Cost Of Maintance

Trademark:

SNOWFALL

Origin:

Guangzhou, China

HS Code:

8418692090

Supply Ability:

300 Sets Per Month

Service:

OEM

Installation:

Front, Roof, Under Mounting Type

Electric:

Optional Electric Standby System

Colour:

White

Fan Material:

Aluminium Alloy

Condensor Design:

Latest Exclusively For Refrigeration Unit

Customization:

Available | Customized Request

Packaging Details:

carton

Highlight:

Mini Truck Transport Refrigeration Units

UTE Food Transport Refrigeration Units

1 Ton Refrigerated Truck Refrigeration Units

Product Description

Frozen Food Transport Refrigeration Units For 1 Ton Refrigerated Truck UTE Mini Truck

Product Attributes

Attribute	Value
Model NO.	SF-200
Sealing Technology	Patented O Sealing Technology
Durability Range	The Highest Level
Maintenance	Lower The Cost of Maintance
Trademark	SNOWFALL
Origin	Guangzhou, China
HS Code	8418692090
Supply Ability	300 Sets Per Month
Service	OEM
Installation	Front, Roof, Under Mounting Type
Electric	Optional Electric Standby System
Colour	White
Fan Material	Aluminium Alloy
Condensor Design	Latest Exclusively for Refrigeration Unit
Customization	Available

Product Description

Specifications

SF-200: Suitable for micro and light truck type cars, using engine driven refrigeration units. It is the first choice for transporting refrigerated food, dairy products, vegetables and fruits. SNOWFALL recommends you choose between a classic engine drive unit and a brand new backup built-in unit. Covering all container volumes, one or more of this series will meet your needs.

The SF-200, an engine-driven transport refrigerating unit, is a reliable refrigerating unit for a refrigerated preservation vehicle with a size of 7~14m. R134a environmental refrigerant is recommended.

Key Features

Optional DC 12V or 24V for your choice
The whole transport refrigerating unit is light and compact, the condenser is in front, and the evaporator can be installed as required
This series of models fully covers the refrigerated capacity ranging from 7 m to 14 m
Each SNOWFALL unit features low cost, low maintenance, low noise, energy saving and environmental protection

Technical Specifications
Model	SF-200
Applicable Temperature (ºC)	15 ~ -18
Cooling Capacity	Environmental Temperature: 35°C 0°C: 2100 Kcal -18°C: 1210 Kcal
Compressor	Model: SD5H11/5H14 Displacement(cc/r): 110cc/138cc
Condenser	Type: P.F. Fan Type: Axial fan Number of Fan: 1 Fans x 1000m³/h
Voltage	DC 12V/DC 24V
Evaporator	Type: Inner screw tube and aluminium fin Fan Type: Axial fan Number of Fan: 1 Fans x 1000m³/h Voltage: DC 12V/DC 24V
Power Consumption	≤ 33A (DC12V) ≤ 16.5A (DC24V)
Refrigerant	R-134a/R-404a
Defrost Type	Automatically hot air defrost
Structure	Split direct drive unit
Dimensions (mm) / Net weight (kg)	SF-200 Evaporator: L610 x W790 x H180 \| 16.5 kg SF-200 Condenser: L520 x W840 x H315 \| 18.2 kg SF-T200 Condenser: L610 x W790 x H180 \| 21.33 kg SF-T200 Condenser: L920 x W660 x H200 \| 23.33 kg
Electric Standby system	Optional part

Rest assured that our products are high quality, best price and reliable. Our products have been exported to many countries for years and enjoyed great reputation. Our oversea markets include: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe etc.
