Transport Refrigeration Units
Created with Pixso.

Exclusive Condenser Design for Refrigeration Unit Truck System Lower Maintenance Cost

Exclusive Condenser Design for Refrigeration Unit Truck System Lower Maintenance Cost

Exclusive Condenser Design for Refrigeration Unit Truck System Lower Maintenance Cost

Detail Information
Product Description
Detail Information
Model NO.:
SF-328
Installation:
Front, Roof, Under Mounting Type
Electric:
Optional Electric Standby System
Colour:
White
Fan Material:
Aluminium Alloy
Condensor Design:
Latest Exclusively For Refrigeration Unit
Sealing Technology:
Patented O Sealing Technology
Design Base Environment:
45 Degree C
Durability Range:
The Highest Level
Maintenance:
Lower The Cost Of Maintance
Transport Package:
Carton Filled With Paper Honeycomb
Trademark:
SNOWFALL
Origin:
Guangzhou, China
HS Code:
8418692090
Supply Ability:
300 Sets Per Month
Certification:
ISO9000
Transmission Type:
Automatic
Bearing Capacity:
Large
Car Type:
Truck
Condition:
New
Service:
OEM
Customization:
Available | Customized Request
Highlight:

customized truck refrigeration unit

,

customized transport refrigeration units

,

under mounting truck refrigeration unit

Product Description
Exclusive Condenser Design for Refrigeration Unit Truck System
Engineered to lower maintenance costs with patented sealing technology and durable aluminum alloy construction.
Product Specifications
Attribute Value
Model NO. SF-328
Installation Front, Roof, Under Mounting Type
Electric Optional Electric Standby System
Colour White
Fan Material Aluminium Alloy
Condensor Design Latest Exclusively for Refrigeration Unit
Sealing Technology Patented O Sealing Technology
Design Base Environment 45 Degree C
Durability Range The Highest Level
Maintenance Lower The Cost of Maintenance
Transport Package Carton Filled with Paper Honeycomb
Trademark SNOWFALL
Origin Guangzhou, China
HS Code 8418692090
Supply Ability 300 Sets Per Month
Certification ISO9000
Transmission Type Automatic
Bearing Capacity Large
Car Type Truck
Condition New
Service OEM
Customization Available
Exclusive Condenser Design for Refrigeration Unit Truck System Lower Maintenance Cost 0
Exclusive Condenser Design for Refrigeration Unit Truck System Lower Maintenance Cost 1
Exclusive Condenser Design for Refrigeration Unit Truck System Lower Maintenance Cost 2
Exclusive Condenser Design for Refrigeration Unit Truck System Lower Maintenance Cost 3
Exclusive Condenser Design for Refrigeration Unit Truck System Lower Maintenance Cost 4
Exclusive Condenser Design for Refrigeration Unit Truck System Lower Maintenance Cost 5
Technical Specifications
Truck Refrigeration Unit SF-T328
  • Maintains optimal freshness and cooling for transported goods
  • Compressor: SD5H14
  • Automatically hot air defrost system
Performance Specifications
  • Applicable Temperature: 15°C to -20°C
  • Cooling Capacity (at 0°C): 2800 Kcal / 3256W / 11109 BTU
  • Cooling Capacity (at -18°C): 1750 Kcal / 2035W / 6943 BTU
Component Details
  • Compressor: Model: SD5H14 (Made in Singapore), Swash plate type, Displacement: 138 cc/r, Lubrication: POE
  • Condenser: Type: P.F., Fan: Axial (2 fans × 1000m³/H), Voltage: DC12V/DC24V

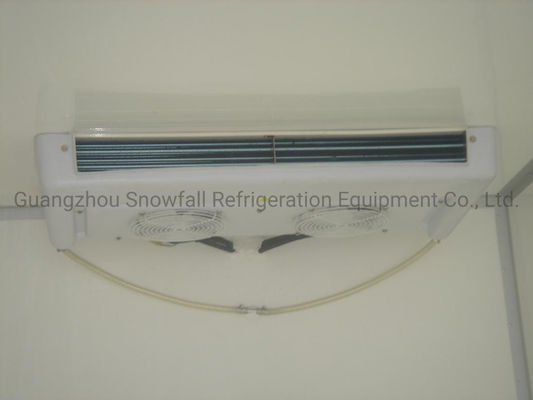

  • Evaporator: Type: Inner screw tube and aluminum fin, Fan: Axial (2 fans × 1000m³/H), Voltage: DC12V/DC24V
  • Power Consumption: Between 33A (DC12V) and 16.5A (DC24V)
  • Refrigerant: R-134a or R404a
  • Throttle Type: External equalizer expansion valve
  • Defrost Type: Automatically hot air defrost
  • Structure: Split direct drive unit
Dimensions & Weight
  • Evaporator: 1270 × 580 × 170mm (50" × 23" × 7"), 31.63kg
  • Condenser: 1000 × 900 × 170mm (39" × 35" × 7"), 33.87kg
Global Market Presence
Our high-quality refrigeration units are exported worldwide and enjoy excellent reputation in:
  • North & South America
  • Eastern & Western Europe
  • Southeast Asia
  • Africa
  • Oceania
  • Middle East
  • Eastern Asia
