Latest Exclusively for Refrigeration Unit Condensor Design Cold Storage Cooler System

Detail Information

Product Description

Detail Information

Model NO.:

SF-700

Condensor Design:

Latest Exclusively For Refrigeration Unit

Sealing Technology:

Patented O Sealing Technology

Design Base Environment:

45 Degree C

Durability Range:

The Highest Level

Maintenance:

Lower The Cost Of Maintance

Transport Package:

Carton Filled With Paper Honeycomb

Trademark:

SNOWFALL

Origin:

Guangzhou, China

HS Code:

8418692090

Supply Ability:

350 Sets Per Month

Condition:

New

Service:

OEM

Installation:

Front, Roof, Under Mounting Type

Electric:

Optional Electric Standby System

Colour:

White

Fan Material:

Aluminium Alloy

Customization:

Available | Customized Request

Highlight:

customized truck refrigeration unit

customized transport refrigeration units

under mounting truck refrigeration unit

Product Description

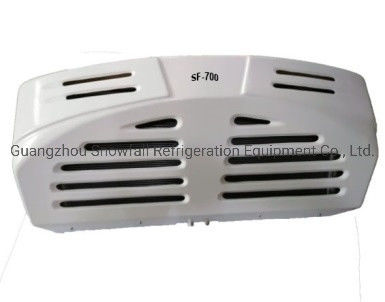

SF-700 Transport Refrigerating Unit

Product Overview

The SF-700 engine-driven transport refrigerating unit is designed for light truck thermal insulation vehicles with volumes ranging from 14-23m³, delivering exceptional refrigeration performance.

This reliable split direct drive unit is the ideal choice for transporting refrigerated frozen food, dairy products, fruits, ice cream, fresh agricultural products, and industrial electronic products, offering stable and dependable refrigeration performance.

Key Features

Optional DC 12V or 24V operation with backup electric refrigeration system (AC 220V/AC 380V optional installation)
Lightweight and compact design with front-mounted condenser and 12-inch large aluminum alloy vane motor imported from Taiwan
Evaporator can be installed as required for flexible configuration
Comprehensive model coverage for freezing capacities ranging from 14m³ to 56m³ with precise matching per square meter
Low cost, low maintenance, low noise operation with energy-saving and environmentally friendly performance

Technical Specifications

Model	SF-700
Applicable Temperature	15°C to -20°C
Cooling Capacity (at 35°C Environmental Temperature)	0°C: 5800 Kcal
Cooling Capacity (at 35°C Environmental Temperature)	-18°C: 3250 Kcal
Compressor Model	QP16/QP21
Compressor Displacement	215cc
Condenser Type	P.F.
Condenser Fan Type	Axial fan
Number of Condenser Fans	3 Fans x 1000m³/h
Voltage	DC 12V / DC 24V
Evaporator Type	Inner screw tube and aluminum fin
Evaporator Fan Type	Axial fan
Number of Evaporator Fans	3 Fans x 1000m³/h
Power Consumption	≤37.5A (DC12V) ≤22.5A (DC24V)
Refrigerant	R-134a / R-404a
Defrost Type	Automatically hot air defrost
Structure	Split direct drive unit
SF-700 Evaporator Dimensions	L570 x W1240 x H240 mm
SF-700 Evaporator Net Weight	31.4 kg
SF-700 Condenser Dimensions	L570 x W1260 x H435 mm
SF-700 Condenser Net Weight	54.3 kg
Electric Standby System (Optional)	AC 220V / AC 380V
