products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Transport Refrigeration Units
Created with Pixso.

Front Installation Chiller Food Truck Refrigerator Unit Cooling System Freezer Equipment

Front Installation Chiller Food Truck Refrigerator Unit Cooling System Freezer Equipment

Front Installation Chiller Food Truck Refrigerator Unit Cooling System Freezer Equipment

Detail Information
Product Description
Detail Information
Colour:
White
Fan Material:
Aluminium Alloy
Condensor Design:
Latest Exclusively For Refrigeration Unit
Sealing Technology:
Patented O Sealing Technology
Durability Range:
The Highest Level
Maintenance:
Lower The Cost Of Maintance
Transport Package:
Carton
Trademark:
SNOWFALL
Origin:
Guangzhou, China
HS Code:
8418692090
Supply Ability:
5000 Sets/ Year
Type:
Cooling System
Application Fields:
Refrigerated Trucks
Condition:
New
Service:
OEM
Installation:
Front, Roof, Under Mounting Type
Electric:
Optional Electric Standby System
Customization:
Available | Customized Request
Highlight:

Front Installation Truck Refrigerator Unit

,

Chiller Food Truck Freezer Equipment

Product Description
Front Installation Chiller Food Truck Refrigerator Unit Cooling System Freezer Equipment
Product Attributes
Colour White
Fan Material Aluminium Alloy
Condensor Design Latest Exclusively for Refrigeration Unit
Sealing Technology Patented O Sealing Technology
Durability Range The Highest Level
Maintenance Lower The Cost of Maintenance
Transport Package Carton
Trademark SNOWFALL
Origin Guangzhou, China
HS Code 8418692090
Supply Ability 5000 Sets/Year
Type Cooling System
Application Fields Refrigerated Trucks
Condition New
Service OEM
Installation Front, Roof, Under Mounting Type
Electric Optional Electric Standby System
Customization Available
Product Description
Truck Refrigeration Units SF-318
  • Latest design condenser
  • O good sealing
  • Compressor Model: SD5H14
  • R-134a refrigerant
Main Specifications
Applicable Temperature: 20°C ~ -5°C
Cooling Capacity: 0°C 1800Kcal/2093W/714BTU
Compressor
  • Model: SD5H14
  • Displacement(cc/r): 138
Condenser
  • Type: P.F.
  • Fan Type: Axial fan
  • Number of fan: 1fan*800m3/h
  • Voltage: DC12V/DC24V
Evaporator
  • Type: Inner screw tube and aluminum fin
  • Fan type: Axial fan
  • Number of fan: 1fan*1000m3/h
  • Voltage: DC12V/DC24V
Power consumption: Between 22A(DC12V) and 11A(DC24V)
Refrigerant: R-134a
Structure: Split direct drive unit
Dimensions/Net Weight:
  • Condenser: 800*480*180mm (31"*19"*7")/17.88kgs
  • Evaporator: 790*590*170mm (31"*23"*6.7")/18.34kgs
Our products have been exported to many countries for years and enjoyed great reputation. Our overseas markets include North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, and Western Europe.

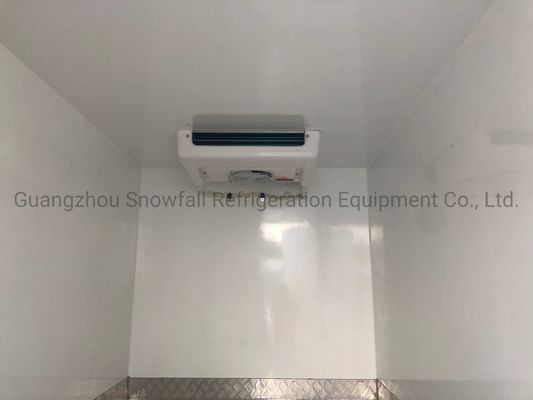

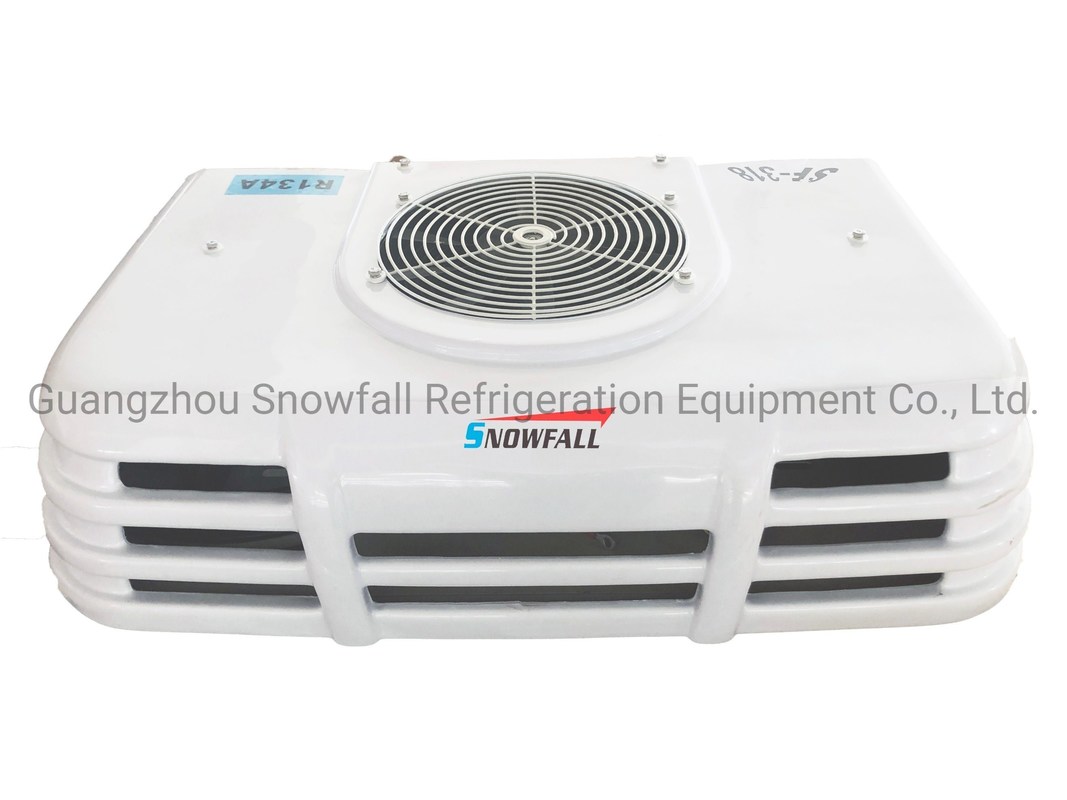

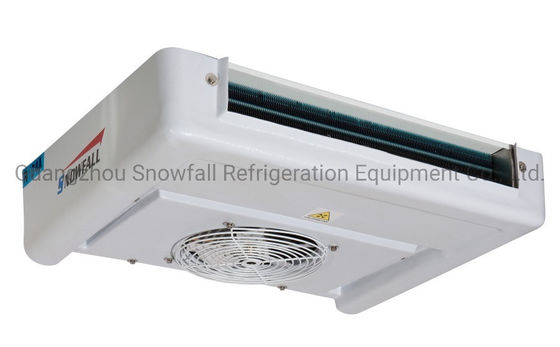

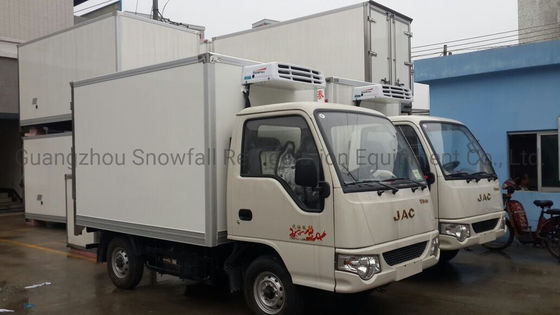

Product Images
Front Installation Chiller Food Truck Refrigerator Unit Cooling System Freezer Equipment 0 Front Installation Chiller Food Truck Refrigerator Unit Cooling System Freezer Equipment 1 Front Installation Chiller Food Truck Refrigerator Unit Cooling System Freezer Equipment 2 Front Installation Chiller Food Truck Refrigerator Unit Cooling System Freezer Equipment 3 Front Installation Chiller Food Truck Refrigerator Unit Cooling System Freezer Equipment 4
Technical Specifications
Specification Details
Unit Model SF-318
Applicable Temperature 20°C ~ -5°C
Cooling Capacity Environmental Temperature: 35°C
0°C: 1800Kcal/2093W/7142BTU
Compressor Model: SD5S14
Displacement(cc/r): 138
Condenser Type: P.F.
Fan Type: Axial Fan
Number of Fan: 1 Fans * 800m³/h
Voltage: DC 12V / DC 24V
Evaporator Type: Inner screw tube and aluminium fin
Fan Type: Axial Fan
Number of Fan: 1 Fans * 1000m³/h
Voltage: DC 12V / DC 24V
Power Consumption ≤22A(DC 12V)
≤11A(DC 24V)
Refrigerant R-134a
Structure Split direct drive unit
Electrical Standby System (optional) AC 220V / AC 380V/ 415V
Dimensions & Net Weight SF-318 Evaporator: 790*590*170mm | 18.34kg
SF-318 Condenser: 800*480*180mm | 17.88kg
SF-T318 Condenser: 870*700*150mm | 21.33kg
