Dry Truck Box
Created with Pixso.

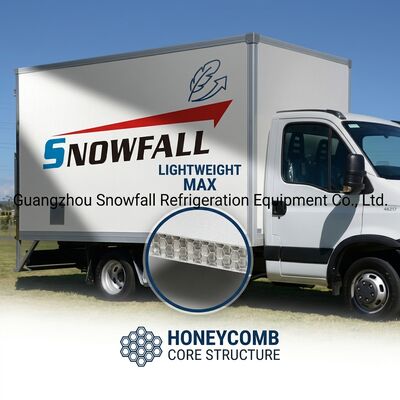

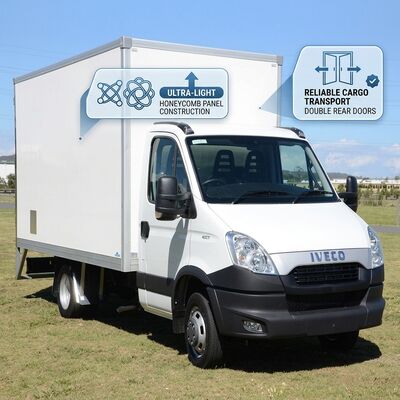

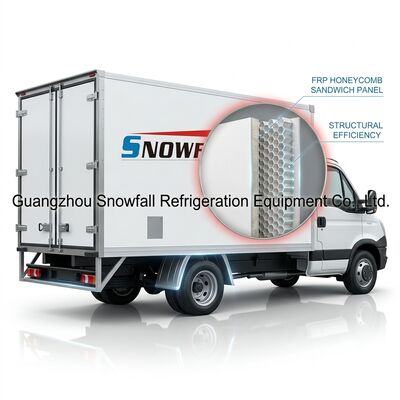

Double Rear Swing Door Lightweight Honeycomb Dry Truck Body for Reliable Cargo Transport

Double Rear Swing Door Lightweight Honeycomb Dry Truck Body for Reliable Cargo Transport

Double Rear Swing Door Lightweight Honeycomb Dry Truck Body for Reliable Cargo Transport

Brand Name: SNOWFALL
Model Number: SF-DTB-019
MOQ: 1set
Price: Negotiation
Payment Terms: T/T, L/C
Supply Ability: 200 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO , SGS, CE
Installation:
Unique & Easy Installation
Weight:
Light In Weight
Transport Package:
Export Standard
Origin:
Guangzhou, China
Supply Ability:
1000set/Year
Assembly:
Easy And Unique
Durability:
Formed At High Pressure By Vacuum Tech
Sealing:
Better Sealing
Strength:
High Strength
Size:
Customizable
Material:
FRP+Honeycomb Sandwich Panel
Customization:
Available | Customized Request
Packaging Details:
flat pack
Supply Ability:
200 sets per month
Highlight:

lightweight honeycomb dry truck body

,

double rear swing door truck box

,

reliable cargo transport dry truck

Product Description

Wide-Access Dry Cargo Box with 270° Swing Doors

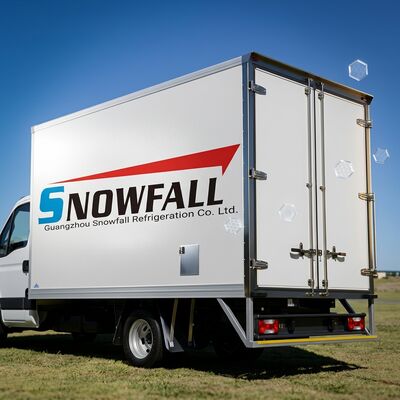

Maximum Rear Access

Equipped with heavy-duty double rear swing doors that open a full 270 degrees, providing unrestricted forklift access to the entire cargo area. The doors lock flat against the side walls, eliminating door interference during loading dock operations and tight-space maneuvering.

Full Accessibility: Doors fold completely out of the way, giving forklifts and pallet jacks a clear 2440mm-wide opening with zero obstruction. Ideal for busy loading docks and cross-dock operations.

Door System Details

  • Door panels: 20mm FRP plywood composite, each 1220mm wide
  • Hinge system: 4* per door, heavy-duty stainless steel with grease fittings
  • Door stays: Magnetic hold-back catches rated for 60km/h wind
  • Full-perimeter sealing: Triple-fin EPDM bulb seal with corner moldings
  • Locking: 4-point cam lock with anti-burst security pins
  • Internal emergency release on both doors

Door Opening Dimensions

Body ModelOpening WidthOpening Height
3160mm body1740mm1650mm
4380mm body2000mm1920mm
6250mm body2450mm2300mm

Stainless steel door frame standard. CE certified. Worldwide delivery.
