Dry Truck Box
Created with Pixso.

Forklift Accessible Base FRP Honeycomb Dry Cargo Box with Panel Kit Assembly System

Forklift Accessible Base FRP Honeycomb Dry Cargo Box with Panel Kit Assembly System

Forklift Accessible Base FRP Honeycomb Dry Cargo Box with Panel Kit Assembly System

Brand Name: SNOWFALL
Model Number: SF-DTB-026
MOQ: 1set
Price: Negotiation
Payment Terms: T/T, L/C
Supply Ability: 200 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO , SGS, CE
Installation:
Unique & Easy Installation
Weight:
Light In Weight
Transport Package:
Export Standard
Origin:
Guangzhou, China
Supply Ability:
1000set/Year
Assembly:
Easy And Unique
Durability:
Formed At High Pressure By Vacuum Tech
Sealing:
Better Sealing
Strength:
High Strength
Size:
Customizable
Material:
FRP+Honeycomb Sandwich Panel
Customization:
Available | Customized Request
Packaging Details:
flat pack
Supply Ability:
200 sets per month
Highlight:

FRP honeycomb dry cargo box

,

forklift accessible truck box

,

dry cargo box panel kit

Product Description

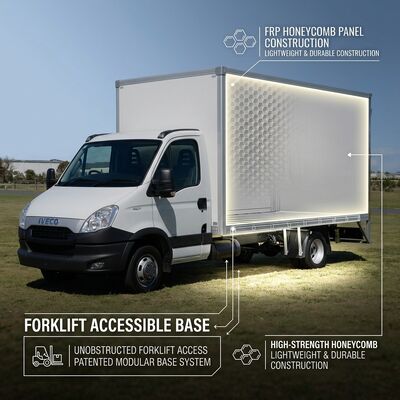

Forklift-Accessible Dry Cargo Box

4-Way Forklift Handling

Features integrated forklift pockets on all four sides of the base frame, enabling safe lifting and positioning from any direction. Each pocket is reinforced with 8mm steel channel and clearly marked with high-visibility safety striping. The base frame is rated for repeated forklift handling throughout the product lifecycle.

Handling Safety: Eliminates dangerous improvised lifting. Forklift pockets are positioned at standard 800mm centers matching all common forklift tine spacings.

Base Frame Specifications

  • Forklift pockets: 4 total (2 front, 2 side) — 200mm*80mm opening
  • Pocket reinforcement: 8mm Q345 steel welded channel, 1200mm long
  • Safety markings: Retro-reflective yellow/black hazard striping
  • Base frame: 120*60mm RHS steel perimeter with center cross-brace
  • Lifting capacity: 5000kg safe working load at maximum body weight
  • Corner castings: ISO 1161 container corner standard for twist-lock lifting

Lifting Methods Compatible

MethodLift PointsMax Load
Forklift (front)2* pockets5,000kg
Forklift (side)2* pockets5,000kg
Crane (top lift)4* corner castings8,000kg
Container handler4* twist-locks8,000kg

CE certified lifting points. Standard on all SNOWFALL dry cargo bodies.
