Ventilation System Equipped FRP Honeycomb Dry Cargo Box with Panel Kit Assembly System

Ventilation System Equipped FRP Honeycomb Dry Cargo Box with Panel Kit Assembly System

Ventilation System Equipped FRP Honeycomb Dry Cargo Box with Panel Kit Assembly System

Brand Name:	SNOWFALL
Model Number:	SF-DTB-011
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T, L/C
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO , SGS, CE

Installation:

Unique & Easy Installation

Weight:

Light In Weight

Transport Package:

Export Standard

Origin:

Guangzhou, China

Supply Ability:

1000set/Year

Assembly:

Easy And Unique

Durability:

Formed At High Pressure By Vacuum Tech

Sealing:

Better Sealing

Strength:

High Strength

Size:

Customizable

Material:

FRP+Honeycomb Sandwich Panel

Customization:

Available | Customized Request

Packaging Details:

flat pack

Supply Ability:

200 sets per month

Highlight:

FRP honeycomb dry cargo box

,

ventilation system truck box

,

panel kit assembly dry box

Product Description

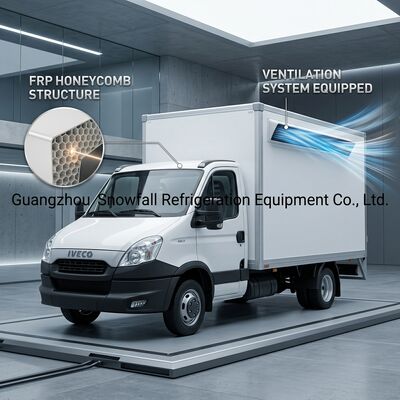

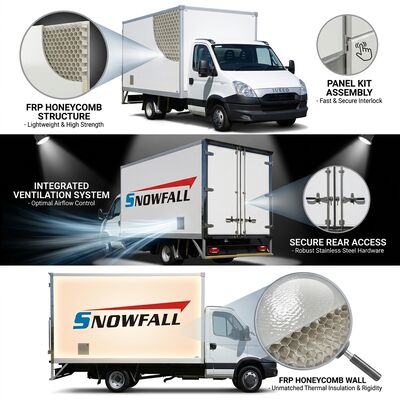

Ventilated Dry Cargo Truck Box

Active Air Circulation

This cargo body integrates a passive cross-ventilation system with 4 side-mounted louvered vents and 2 roof exhaust ports, creating continuous natural airflow that prevents condensation buildup, mold growth, and odor accumulation. Ideal for transporting agricultural products, fresh produce, and humidity-sensitive goods.

Humidity Control: Internal humidity levels remain within 10% of ambient, eliminating cargo sweat and condensation damage without requiring powered refrigeration units.

Ventilation Components

4* side louver vents (2 per side) with stainless steel insect mesh (1.5mm aperture)
2* roof turbine exhaust vents for passive hot air extraction
Adjustable vent dampers for seasonal airflow control
Internal baffle design prevents water ingress during rain or washing
Total vent area: 0.12m² providing 6 air changes per hour at highway speed

Airflow Data

Vehicle Speed	Air Changes/Hour	Internal Humidity Reduction
Stationary	0.5 (thermal)	5%
60 km/h	6	18%
100 km/h	12	25%

Standard panel construction: FRP + PP honeycomb. Global delivery available.
