Aluminum Extrusion Frame FRP Composite Sandwich Dry Cargo Box with Quick Installation Design

Brand Name:	SNOWFALL
Model Number:	SF-DTB-008
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T, L/C
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO , SGS, CE

Installation:

Unique & Easy Installation

Weight:

Light In Weight

Transport Package:

Export Standard

Origin:

Guangzhou, China

Supply Ability:

1000set/Year

Assembly:

Easy And Unique

Durability:

Formed At High Pressure By Vacuum Tech

Sealing:

Better Sealing

Strength:

High Strength

Size:

Customizable

Material:

FRP+Honeycomb Sandwich Panel

Customization:

Available | Customized Request

Packaging Details:

flat pack

Supply Ability:

200 sets per month

Highlight:

Aluminum extrusion dry truck box

FRP composite sandwich cargo box

Quick installation dry cargo box

Product Description

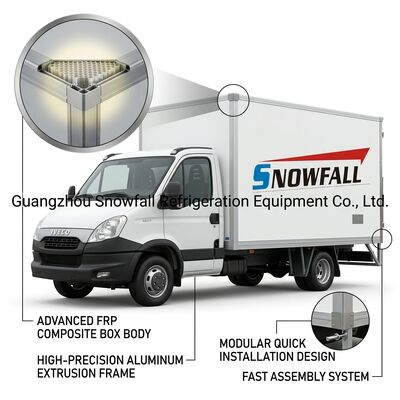

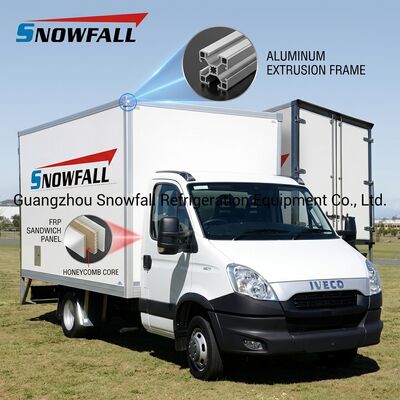

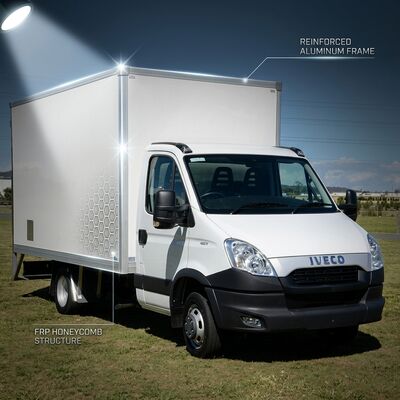

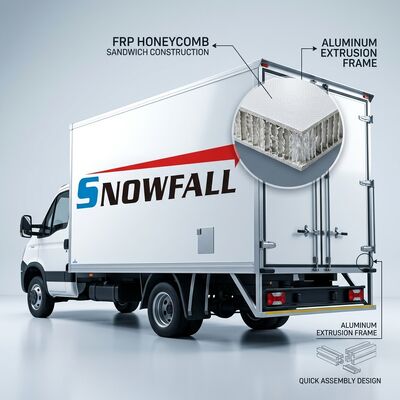

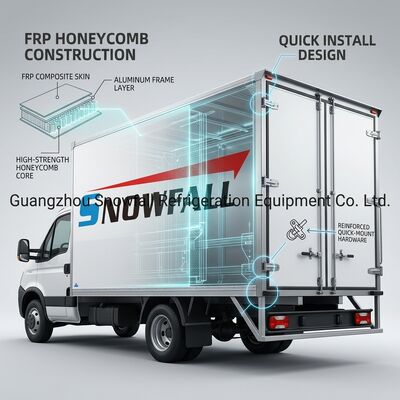

Aluminum Extrusion Frame Dry Cargo Box

Lightweight Structural System

This model employs a complete 6063-T6 aluminum alloy extrusion framework that replaces traditional steel structural members, achieving a 35% weight reduction while maintaining equivalent structural strength. All extrusions feature internal ribbing for stiffness and integrated channels for panel attachment.

Weight Savings: A standard 4380mm body weighs only 420kg (vs 650kg steel-frame equivalent), increasing legal payload by 230kg per trip — translating to significant fuel savings over the vehicle lifetime.

Extrusion Profile Details

Material: 6063-T6 architectural aluminum alloy
Corner posts: 80*80mm triple-chamber extrusion
Roof bows: 60*40mm C-section with integrated wiring channel
Floor rails: 100*50mm box section with forklift pocket cutouts
Surface: Clear anodized 15μm or powder-coated to specification

Weight Comparison

Component	Steel Frame	Aluminum Frame
Corner posts (4*)	96kg	38kg
Roof structure	85kg	42kg
Floor rails	120kg	72kg
Total frame weight	301kg	152kg

10-day delivery on standard configurations. Worldwide shipping.
