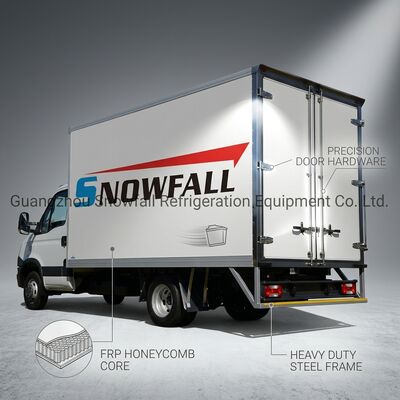

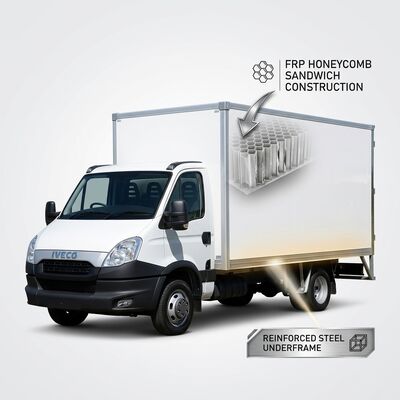

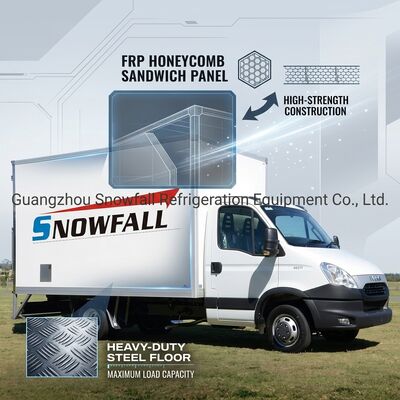

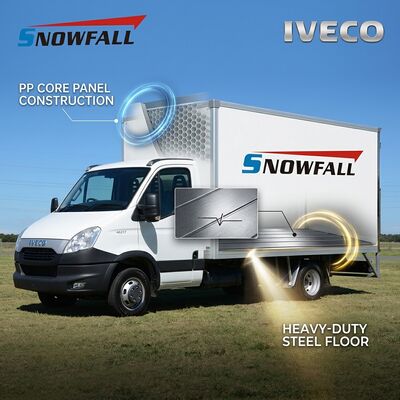

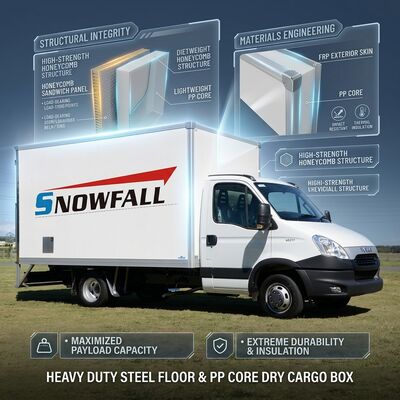

Heavy Duty Steel Floor PP Core Dry Truck Body Box for Freight Transport Application

Brand Name:	SNOWFALL
Model Number:	SF-DTB-007
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T, L/C
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO , SGS, CE

Installation:

Unique & Easy Installation

Weight:

Light In Weight

Transport Package:

Export Standard

Origin:

Guangzhou, China

Supply Ability:

1000set/Year

Assembly:

Easy And Unique

Durability:

Formed At High Pressure By Vacuum Tech

Sealing:

Better Sealing

Strength:

High Strength

Size:

Customizable

Material:

FRP+Honeycomb Sandwich Panel

Customization:

Available | Customized Request

Packaging Details:

flat pack

Supply Ability:

200 sets per month

Highlight:

Heavy Duty Steel Dry Truck Box

PP Core Freight Transport Box

Steel Floor Dry Truck Body

Product Description

Heavy Duty Steel Floor Dry Truck Box

Industrial-Grade Floor System

This dry cargo body is built around a 5mm heavy-gauge steel checkered plate floor with reinforced cross-member support. Designed for operations involving forklift traffic, pallet jack maneuvering, and heavy point loads up to 8 tons per square meter. The floor structure features 12 longitudinal reinforcement ribs welded at 300mm intervals.

Load Capacity: Floor rated for 8T/m² uniform load. Verified through destructive testing at 12.5T/m² with 1.5* safety factor. Suitable for steel coils, machinery, and dense construction materials.

Floor Specifications

Plate material: Q235B structural steel, 5mm thickness
Surface pattern: 3mm raised diamond checkered anti-slip profile
Underfloor beams: 12* 80mm C-channel steel cross-members
Corrosion protection: Two-component epoxy primer + polyurethane topcoat
Drainage: 4* integrated drain plugs with removable covers

Dimension	Small	Medium	Large
LWH (mm)	316017401650	438020001920	625024502300
Floor rating	8T/m²	8T/m²	8T/m²

Flat pack CKD delivery. All sizes available. Inquire for pricing.
