Anti-Corrosion Coated PP Core Dry Truck Body Box for Freight Transport Application

Brand Name:	SNOWFALL
Model Number:	SF-DTB-002
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T, L/C
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO , SGS, CE

Installation:

Unique & Easy Installation

Weight:

Light In Weight

Transport Package:

Export Standard

Origin:

Guangzhou, China

Supply Ability:

1000set/Year

Assembly:

Easy And Unique

Durability:

Formed At High Pressure By Vacuum Tech

Sealing:

Better Sealing

Strength:

High Strength

Size:

Customizable

Material:

FRP+Honeycomb Sandwich Panel

Customization:

Available | Customized Request

Packaging Details:

flat pack

Supply Ability:

200 sets per month

Highlight:

Anti-corrosion coated dry truck box

PP core freight transport box

Dry truck body box with coating

Product Description

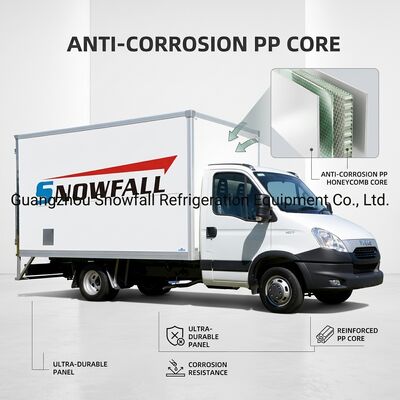

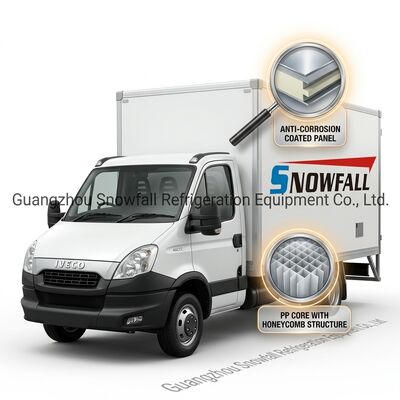

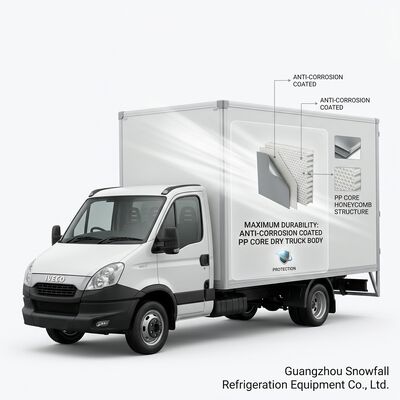

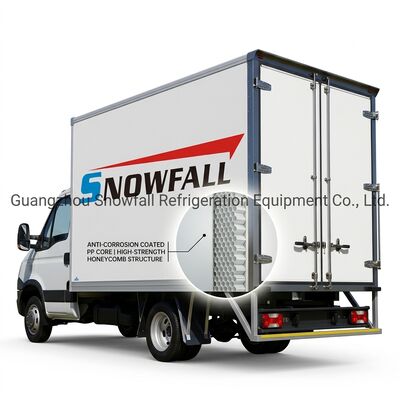

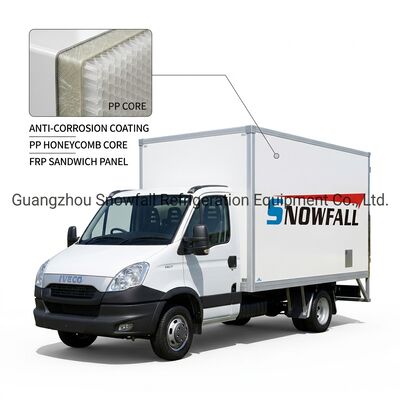

Anti-Corrosion Dry Cargo Truck Box

Corrosion Protection System

Engineered for coastal regions and chemical transport, this dry cargo body features a comprehensive anti-corrosion treatment across all metal and composite components. The FRP exterior receives a UV-cured gel coat with zinc-rich primer underneath, while all aluminum extrusions undergo hard anodizing for maximum oxidation resistance.

Key Advantage: Extended service life in harsh environments including seaside ports, chemical plants, and high-salinity road conditions. Resists rust formation for 15+ years of operation.

Protected Components

FRP panels: Anti-corrosion gel coat + moisture barrier layer
Aluminum profiles: 6063-T5 hard anodized to 25μm thickness
Steel floor: Hot-dip galvanized 3mm checkered plate
Fasteners: All A2-70 stainless steel (304 grade)
Door hardware: Marine-grade 316 stainless hinges and locks

Specification Table

Parameter	Value
Panel type	FRP + PP Honeycomb + FRP
GFRP thickness	1.5mm per side
Core thickness	18mm PP honeycomb
Floor	3mm galvanized steel plate
Rear door	2* 20mm FRP plywood swing doors

Available for global shipping. 10-day lead time for standard configurations.
