products details

Home Products

Anti Water Honeycomb Cored Panel , PP Honeycomb Panel With FRP Fire Proof

Detail Information

Product Description

Detail Information

Model No:

Fiberglass Frp Panel Sheet

Installation Method:

Easy And Quick Installation With Tongue And Groove Joints

Impact Resistance:

10-20 Times Stronger Than Traditional Panels

Transport Package:

Pallet

Fire Resistance:

Class A

Color:

White Or Customized

Highlight:

Anti Water PP Honeycomb Panel

PP Honeycomb Panel With FRP

Fire Proof Honeycomb Cored Panel

Product Description

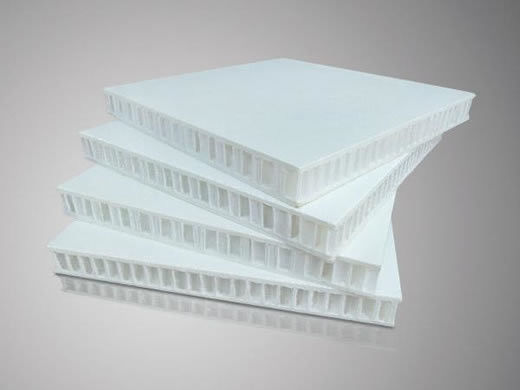

PP Honeycomb Core Panels

Construction

Honeycomb-cored panels are manufactured using a composite structure of glass reinforced fiber plastic + PP honeycomb cell core + glass reinforced fiber plastic.

Applications

PP honeycomb panels with FRP are replacing traditional metal or plywood materials. The PP honeycomb core serves as an excellent material for sandwich construction, featuring a polyester non-woven surface that facilitates easy bonding and compatibility with most surface sheet materials.

Lighter and stiffer than traditional materials
Environmentally friendly solution
Versatile applications: van trucks, express trains, aerospace
Moisture proof and water proof
Sound insulation and anti-corrosion properties
Available with both non-woven fabric and laminating film

Key Advantages

Light Weight: PP honeycomb board is 1/12 times the weight of same volume of water and 1/32 times the weight of aluminum, significantly reducing load weight for vehicles, ships, and light rail vehicles
Sound and Heat Insulation: The air between honeycomb panel layers is divided into numerous closed cells that prohibit the spread of sound and heat
High Intensity and Stiffness: Small cell sizes at high density configurations provide superior structural integrity
Water and Humidity Resistance: Maintains shape and integrity even when submerged in water
Environmentally Friendly: Non-toxic, harmless, recyclable material suitable for food storage and packaging
Anti-Corrosion: Excellent chemical stability
Insulation Properties: Relatively low permittivity
Fire Resistance: When used with fire-proof plate

Technical Specifications

Parameter	Specification
Type	With non-woven fabrics / Without
Cell Size	8 mm
Color	White
Density	80 kg/m³
Compressive Strength (DIN 53421)	1.65 MPa
Shear Strength (DIN 53294)	0.45 MPa
Effective Temperature Range	-15°C to +80°C
Thermal Conductivity (0°C)	0.01 W/mK
Sound Reduction Factor (50-4,000Hz)	20 dB
Water Absorption (Max)	0.1%
Water Absorption (24H)	0.1%
Flammability	Normal
Thickness	5-450 mm
