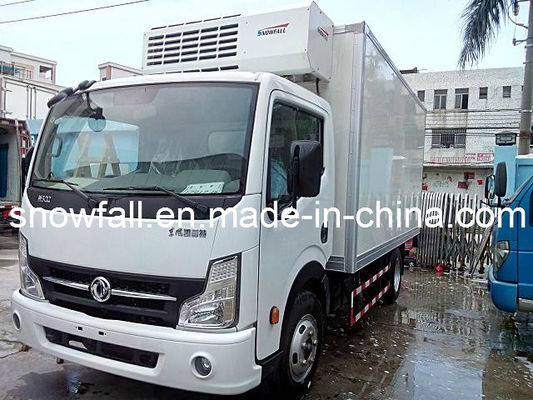

Insulated Truck Body Ice Cream Frozen Food Transport For 380V Or 220V Vehicles

Brand Name:	SNOWFALL
MOQ:	1set
Price:	Negotiation
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO , SGS, CE

Model NO.:

Snowfall Truck Body

Character:

Regardless Of Engine Of The Vehicle

Strength:

Prolonged Life Of Vehicle

Keep Cooling:

16 Hours

Charge:

8 Hours

Environmental:

No Noise And No Vibration

Transport Package:

Export Standard

Trademark:

SNOWFALL

Origin:

Guangzhou, China

HS Code:

8707909000

Supply Ability:

100 Sets Per Month

Certification:

ISO9000

Service:

OEM

Color:

White Or Customizable

Size:

Customizable

Power:

380V Or 220V

Refrigeration Gas:

R404A

Customization:

Available | Customized Request

Packaging Details:

flat pack

Supply Ability:

200 sets per month

Highlight:

Frozen Food Transport Insulated Truck Body

Insulated Truck Body for Ice Cream

Product Description

Eutectic Cold Bar System Truck Body

Product Overview

The Eutectic Cold Bar System is widely used throughout Europe for frozen food transportation, offering significant advantages including prolonged vehicle lifespan through electric power operation instead of truck engine dependency.

This innovative refrigeration system consists of compressor, condenser, control box, and eutectic (freezing) bars. It represents a new concept in refrigeration technology that maintains cold temperatures for extended periods by creating latent heat during the slow dissolution of fluid after solidification on freezing plates at specific temperatures.

The system operates by accumulating cold energy on freezing plates through nighttime refrigeration operation, enabling cold preservation of products throughout the daytime using the accumulated cold energy.

Key Features

Enhanced vehicle performance through 380V/220V power operation independent of vehicle engine
Superior cooling capability reaching -40°C, maintaining constant -25°C temperature for 16 hours to perfectly preserve frozen foods
Pleasant transportation conditions with minimal noise and vibration
Early cooling operation capability allowing frozen product storage in vehicles and extended product selling time
Reduced mechanical issues due to complete disconnection from vehicle engine operation

Our products guarantee high quality, competitive pricing, and reliable performance. With years of export experience to numerous countries, we have established an excellent reputation in the industry.

Technical Specifications

Vehicle	Truck Body Size	Condensing Unit	Electric	Compressor	Eutectic Plate (Stainless Steel)	Freeze Capacity (kcal)	Refrigeration Gas
1.0t	3160×1740×1650 mm	3 HP	3pole 380v 50hz: 2.2w	Copeland scroll type	5 pcs	1890kcal×5pcs=9450kcal	R404A 3.0kg charge
2.5t	4380×2000×1920 mm	5 HP	3pole 380v 50hz: 2.2w	Copeland scroll type	8 pcs	1890kcal×8pcs=15120kcal	R404A 4.5kg charge
3.5t	4800×2000×2000 mm	5 HP	3pole 380v 50hz: 2.2w	Copeland scroll type	9 pcs	1890kcal×9pcs=17010kcal	R404A 4.5kg charge
5.0t	6250×2450×2300 mm	5 HP	3pole 380v 50hz: 2.2w	Copeland scroll type	11 pcs	1890kcal×11pcs=20790kcal	R404A 4.5kg charge
8.0t	7500×2500×2300 mm	5 HP	3pole 380v 50hz: 2.2w	Copeland scroll type	13 pcs	1890kcal×13pcs=24570kcal	R404A 4.5kg charge
11.0t	9150×2500×2250 mm	7.5 HP	3pole 380v 50hz: 2.2w	Copeland scroll type	15 pcs	1890kcal×15pcs=28350kcal	R404A 6.0kg charge

Condensing Unit Size: W560×L1250×T50 mm | Eutectic Plate Size: W560×L1550×T50 mm (with solution at -33°C)
