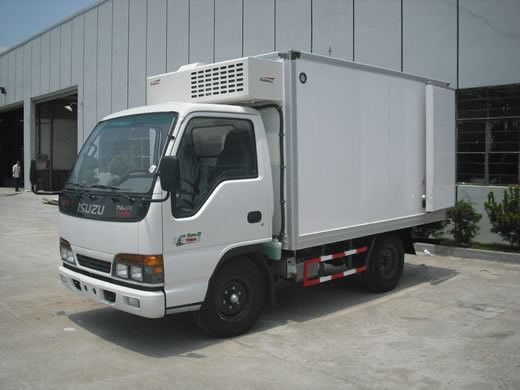

Ice Cream Eutectic Plate Truck Body low temperature reefer van body

Ice Cream Eutectic Plate Truck Body low temperature reefer van body

Brand Name:	SNOWFALL
MOQ:	1set
Price:	Negotiation
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO , SGS, CE

Packaging Details:

flat pack

Supply Ability:

200 sets per month

Highlight:

Ice Cream Eutectic Plate Truck Body

Ice Cream Reefer Van Body

Low Temperature Reefer Truck Body

Product Description

Eutectic Cold Plate System

Eutectic cold plate system is widely used in Europe for frozen food transportation, offering significant advantages including extended vehicle lifespan and reduced engine dependency by utilizing electric power instead of truck engines.

This innovative freezing method accumulates cold energy on freezing plates by operating refrigerators at night, enabling continuous cold preservation of products throughout the day using the stored thermal energy.

System Features

Enhanced vehicle performance through 380V/220V power source independent of vehicle engine
-40℃ cooling capability ensures perfect frozen food preservation, maintaining -25℃ constant temperature for 16 hours
Early cooling operation capability allows frozen products to remain in vehicle, extending product selling time
Reduced mechanical issues due to complete disconnection from vehicle engine operation

Technical Specifications

Vehicle	Truck Body Size L x W x H (mm)	Condensing Unit	Electric	Compressor	Eutectic Plate (STS)	Freeze Capacity (kcal)	Refrigeration Gas
1.0t	3160x1740x1650	3HP	3pole 380V-50HZ:2.2W	Copeland Scroll type	5pcs	9450kcal	R404A
2.5t	4380x2000x1920	5HP	3pole 380V-50HZ:3.75W		8pcs	15120kcal	R404A
3.5t	4800x2000x2000	5HP	3pole 380V-50HZ:3.75W		9pcs	17010kcal	R404A
5.0t	6250x2450x2300	7.5HP	3pole 380V-50HZ:5.5W		11pcs	20790kcal	R404A
8.0t	7500x2500x2300	7.5HP	3pole 380V-50HZ:5.5W		13pcs	24570kcal	R404A
11.0t	9150x2500x2250	7.5HP	3pole 380V-50HZ:7.5W		15pcs	28350kcal	R404A
