Thermal Insulation Refrigerated Truck Box with New Condition and Formed at High Pressure by Vacuum Tech

MOQ:	1
Price:	2500

Detail Information

Product Description

Detail Information

Transmission Type:

Manual

Horsepower:

<150hp

Fuel Type:

Diesel

Weight:

Light In Weight

Panel Material:

FRP Sandwich Panel

Insulation Material:

Extruded Polystyrene Foam

Heat Conductivity:

0.20W/M².K (FRP), 0.018-0.028W/M².K (foam)

Heat Transference:

<0.3W/M².K

Fire Retardant:

B1 Level

Service Life:

4-6x Traditional Products

Floor Material:

Figured Aluminum Panel

Door Sealing:

Imported Rubber

Edge Material:

Aluminum Alloy/stainless Steel

Hinge Material:

Stainless Steel/galvanized

Production Capacity:

150 Sets/month

Highlight:

Thermal Insulation Refrigerated Truck Box

New Condition Insulated Truck Body

Formed at High Pressure CKD Truck Cargo

Product Description

Insulated Truck Box CKD Truck Cargo

High-performance refrigerated truck body designed for optimal thermal insulation and durability in demanding transportation environments.

Material & Performance

New type FRP (Fiberglass Reinforced Plastic) outer and inner skin
Sandwich panel construction with extruded polystyrene foam core for superior thermal insulation
Panels fixed to steel frame with high-strength adhesive and rivets for structural integrity

Construction Features

Fully enclosed structure with all panels adhered using high-strength structural adhesive
Designed for reliable sealing and insulation properties
Modular design enables fast and easy assembly

Specifications

High-accuracy door panels with imported sealing rubber for excellent airtight and thermal insulation

Interior and exterior finished with aluminum alloy profiles or stainless steel components (edges, corners, hinges, locks)

Protective guardrails on sides and rear with integrated lighting system

Reinforced floor design with figured aluminum panels for superior load capacity and wear resistance

Customizable material selection and structure design to meet specific requirements

Optional interior compartments for multi-temperature zone capability

Key Properties

Property	Description
Weight	30-40% lighter than traditional domestic products
Thermal Insulation	Overall heat transfer coefficient (K-value) below 0.3W/M².K
Surface Durability	High tensile/bending strength, chemical resistant, UV protected, easy to clean
Water Resistance	Excellent impermeability on both FRP surfaces
Fire Safety	Conforms to national standard B1 fire retardant level
Service Life	4-6 times longer than traditional products
Maintenance	Repairs leave no visible traces, superior to steel/aluminum
Environmental	No volatile/corrosive substances, fluorine-free foam core
Refrigeration	Compatible with USA, German, or Chinese refrigeration units

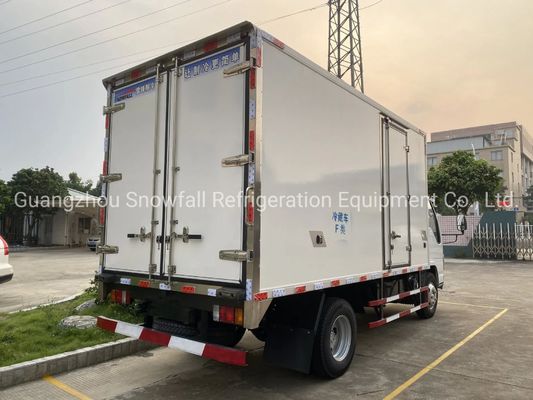

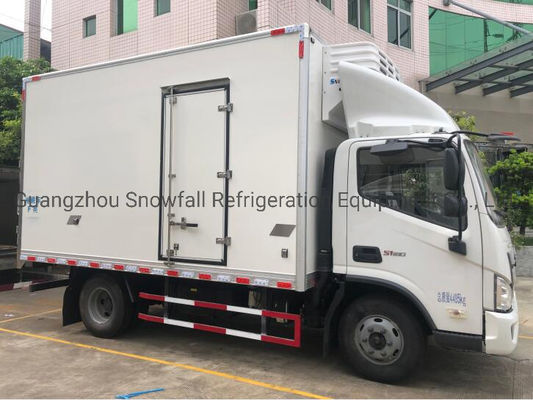

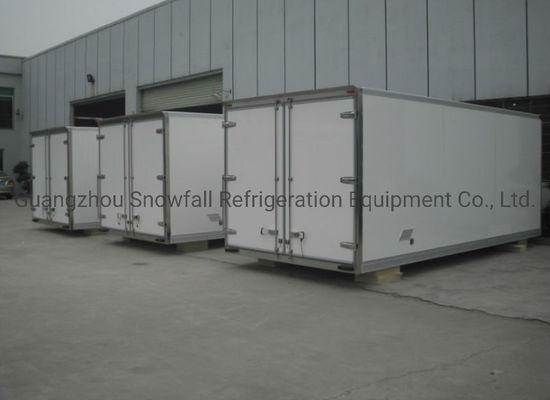

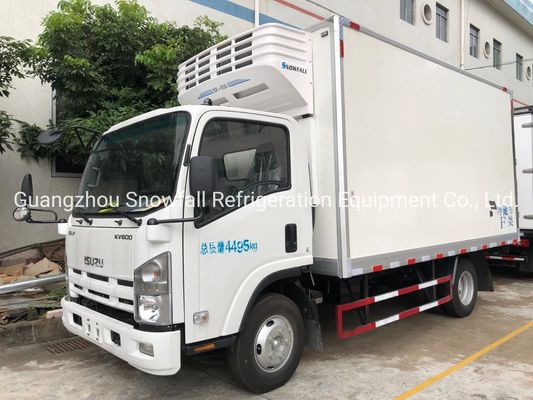

Product Images

Global Reputation: Our insulated truck bodies have been exported worldwide and earned excellent customer feedback for their quality and performance.
