Small Refrigerated Truck Box Van Body 8ft to 32ft Customizable

MOQ:	10
Price:	4800

Detail Information

Product Description

Detail Information

Outer Material:

FRP

Inner Material:

FRP

Insulation Material:

Extruded Polystyrene Foam

Panel Construction:

Sandwich Type

Heat Conductivity:

0.20W/M².K (FRP), 0.018-0.028W/M².K (polyurethane Foam)

Overall Heat Transfer:

Below 0.3W/M².K

Weight Reduction:

30-40% Lighter

Fire Retardant Level:

Service Life:

4-6x Traditional Products

Floor Material:

Figured Aluminum Panel

Edge Material:

Aluminum Alloy/stainless Steel

Corner Material:

Stainless Steel/FRP

Hinge Material:

Stainless Steel/galvanized

Available Lengths:

8ft To 32ft

Production Capacity:

150 Sets/month

Highlight:

small refrigerated truck box van

customizable refrigerated truck body

8ft to 32ft refrigerated van

Product Description

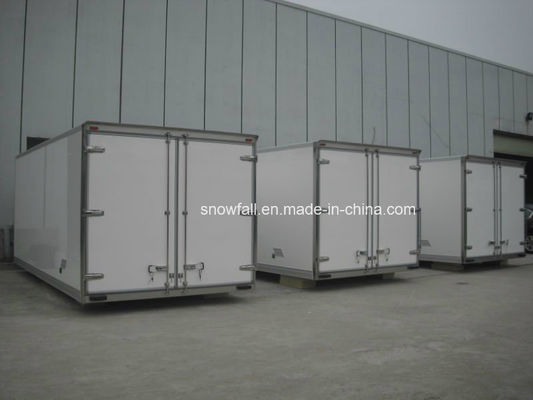

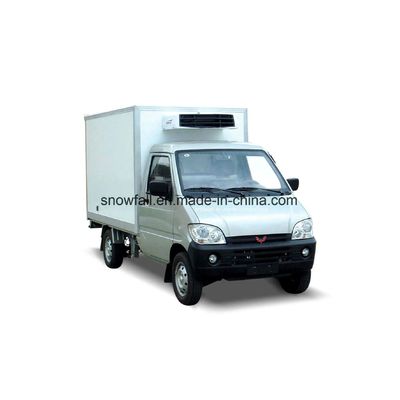

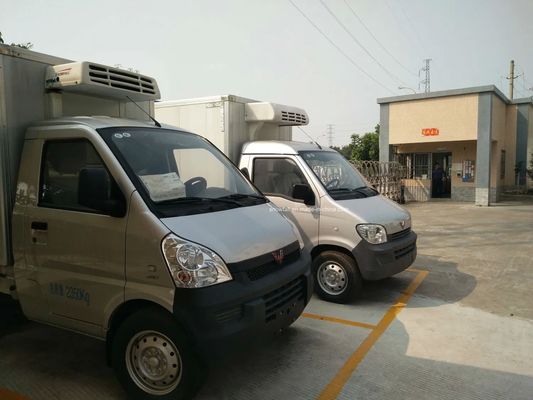

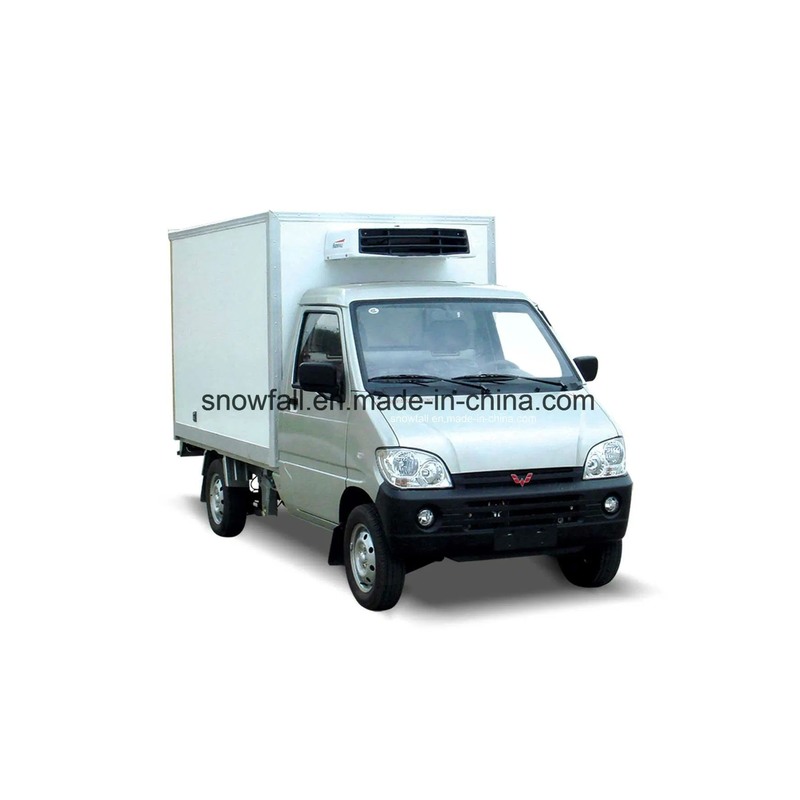

Small Refrigerated Truck Box Van Body

Our small refrigerated truck box van body offers superior thermal insulation and durability for commercial refrigeration transport needs.

Material & Performance

FRP outer and inner skin construction for durability
Sandwich panel design with extruded polystyrene foam core for excellent thermal insulation
Panels secured to steel frame with high-strength adhesive and rivets

Construction Features

Fully enclosed structure with high-strength structural adhesive for reliable sealing and insulation
Quick and easy assembly design

Specifications

Precision door panels with imported sealing rubber for optimal airtight performance
Aluminum alloy or stainless steel trim for durability and aesthetics
Protective guardrails and lighting systems installed
Reinforced floor with figured aluminum panels for strength and easy loading
Customizable design options available
Optional interior compartments for multiple temperature zones

Key Properties

Lightweight: 30-40% lighter than traditional products
Superior Insulation: Overall heat transfer coefficient below 0.3W/m²K
Durable Surface: High tensile strength, chemical resistance, and UV protection
Waterproof: Excellent water impermeability on both sides
Fire Retardant: Meets national standard B1 level
Long Service Life: 4-6 times longer than traditional products
Easy Maintenance: Repairs leave no visible traces
Eco-Friendly: No volatile substances, fluorine-free materials
Refrigeration Options: Available with USA, German, or Chinese refrigeration units

Our refrigerated truck bodies have been exported worldwide to North America, South America, Europe, Asia, Africa, and Oceania, earning an excellent reputation for quality and performance.
